PROCESS CASE STUDIES
These representative process studies show how Zanhor approaches workholding, machining sequence, finishing and inspection for common CNC part families. Project details are presented without customer-identifying information.
PROCESS STUDYMaintain the relationship between the sealing groove, connector openings and mounting datums while protecting cosmetic exterior faces.
PROCESS STUDYControl journal diameters, shoulder locations and runout across multiple turned features on a slender component.

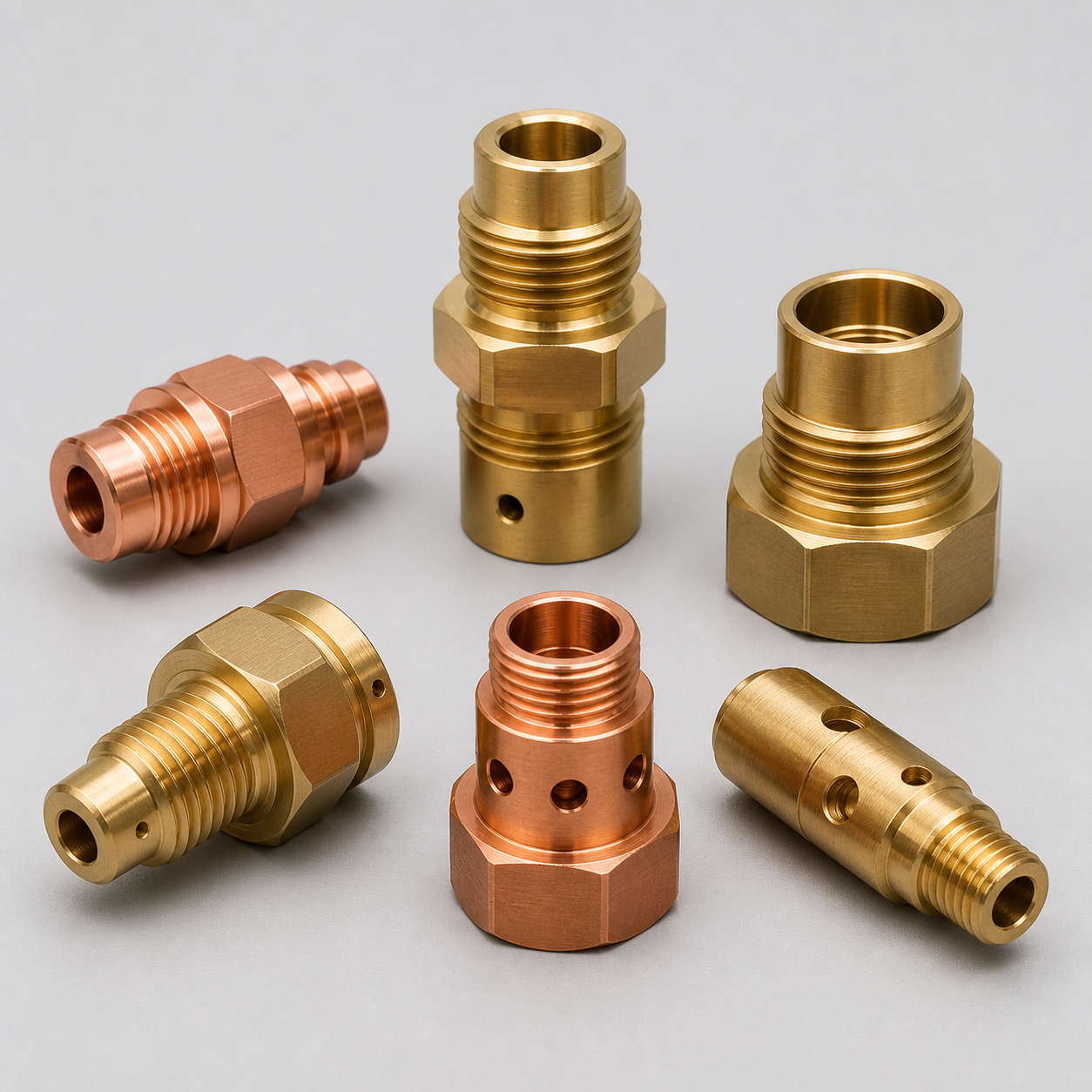

PROCESS STUDYCoordinate thread form, sealing shoulder and concentric bore requirements while keeping small cross holes free of burrs.

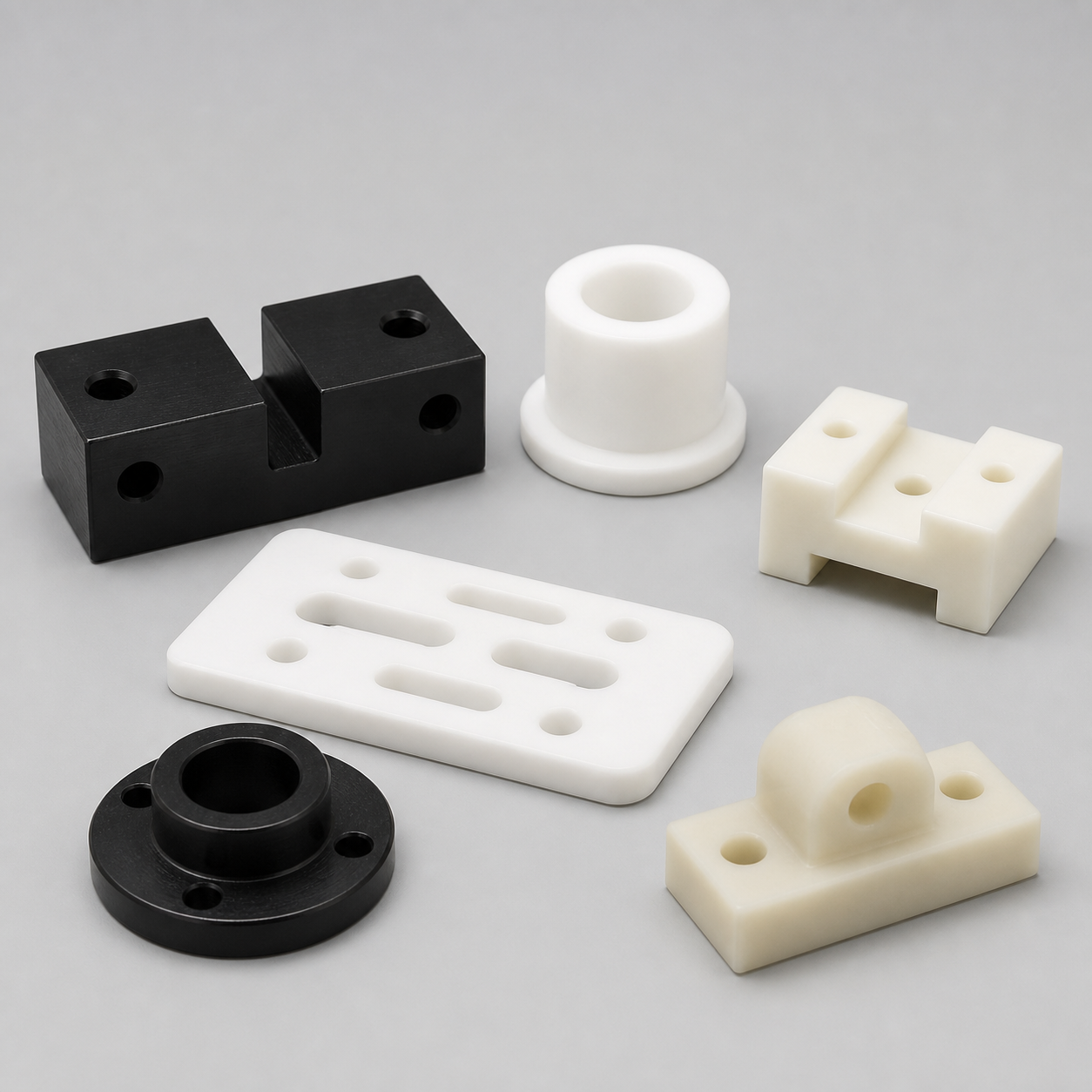

PROCESS STUDYHold functional slot and mounting geometry while accounting for material movement, clamping sensitivity and service temperature.
YOUR PART, YOUR REQUIREMENTS
Send the latest revision, material, quantities and critical features for a focused DFM review.
